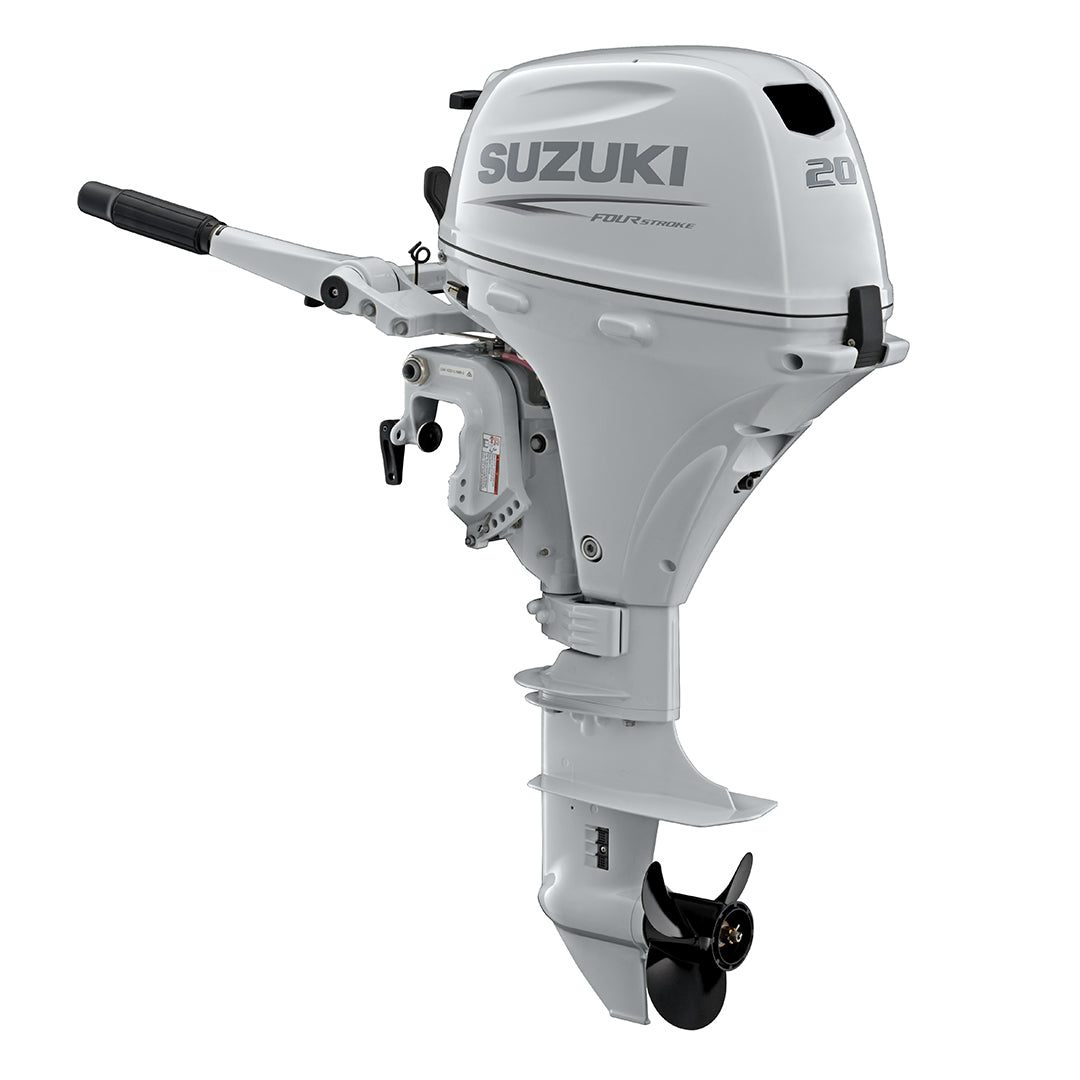

Suzuki 20 HP DF20ASW5 Outboard Motor
CA Customers:
Warning: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
- Electronic Fuel Injection (EFI)
- Sleek, Compact, Lightweight Design
- Saltwater Rated
- Fresh Water Flushing Port
- Multi-Layer Corrosion Protection
- Decompression Release for Easy Starts
- Forward-Mounted Gear Shift Lever
- Twist-Grip Throttle with Tension Control
- Quiet Through-the-Prop Exhaust
- Start-in-Gear Lockout Protection
- Proven Automotive Style Oil Pump
- Shallow Water Drive
- 5 Trim Positions w/Tilt Lock Pin
- Low Oil Pressure Warning System
- Over Heat Warning System
- Over-Rev Limiter Protection
- Steering Friction Tension Control
- Integrated Carrying Handle
- Emergency Lanyard Stop Switch
- 3.1 US Gallon Fuel Tank / Fuel Line
- 3-Blade Aluminum Propeller
- 3-Star Ultra-Low Emission Rating
- Suzuki's Lean Burn Control System
- Suzuki's Newest 5-Year Manufacturer Warranty
MODEL | DF20ASW5 |
---|---|
SKU | DF20ASW5 |
WEIGHT | 97.0 lb |
MANUFACTURER | Suzuki |
COUNTRY OF MANUFACTURE | Thailand |
HORSEPOWER | 20hp |
SHAFT LENGTH | 15" (Short) |
STEERING | Tiller |
STARTING | Manual |
TRIM & TILT | Manual |
FUEL DELIVERY | EFI |
FUEL TANK | External |
CYLINDER(S) | 2 |
DISPLACEMENT | 327 cc (20.0 cubic inches) |
BORE AND STROKE | 60.4 x 57 mm (2.38 x 2.24 inches) |
FULL THROTTLE RPM RANGE | 5300-6300 RPM |
IGNITION SYSTEM | Digital CDI |
INDUCTION SCAVENGING | SOHC |
VALVES PER CYLINDER | 2 |
FUEL TYPE | Unleaded Gasoline (87 octane) |
FUEL TANK / FUEL LINE | INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line |
OIL TYPE | SAE 10W-30 or SAE 10W-40 |
OIL CAPACITY | 33.8 fl oz. (1000 mL) |
LUBRICATION | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
ALTERNATOR | 12V 80W 6A (OPTIONAL) |
COOLING SYSTEM | Water-Cooled |
SALTWATER RATED | Yes |
GEAR RATIO | 2.08:1 |
GEAR SHIFT | Forward-Neutral-Reverse (front-mounted lever) |
PROPELLER | 3-Blade Aluminum 9.25" Dia x 10" Pitch |
INTERNAL BATTERY | No |
In The Box
- 3.1 gal. Fuel Tank
- Fuel Line
- Owner's Manual
- Aluminum Propeller
- Tool Kit
- Suzuki's Newest 5-Year Manufacturer Warranty
Thank you for your interest in Suzuki outboard motors. Suzuki doesn't use and prohibits advertising of model years. All of our inventory is brand new, current production, and includes the full 5-Year Suzuki Marine warranty. You can visit Suzuki Marine's FAQs for more information.
WHAT DOES MODEL YEAR ELIMINATION MEAN AND HOW DOES IT AFFECT MY SUZUKI OUTBOARD?
We have studied the actions of the other major outboard manufacturers and now believe that Model Year Elimination will offer a host of benefits to our Customers, Dealers and Boat Builders. Suzuki Marine can now introduce new outboard models to the market during the boating season, instead of waiting until the model year change. Consumers will be able to purchase these models sooner than in the past. Dealers and Boat Builders will carry a better supply of outboards because they will not have to reduce inventory in advance of a Model Year Change.
