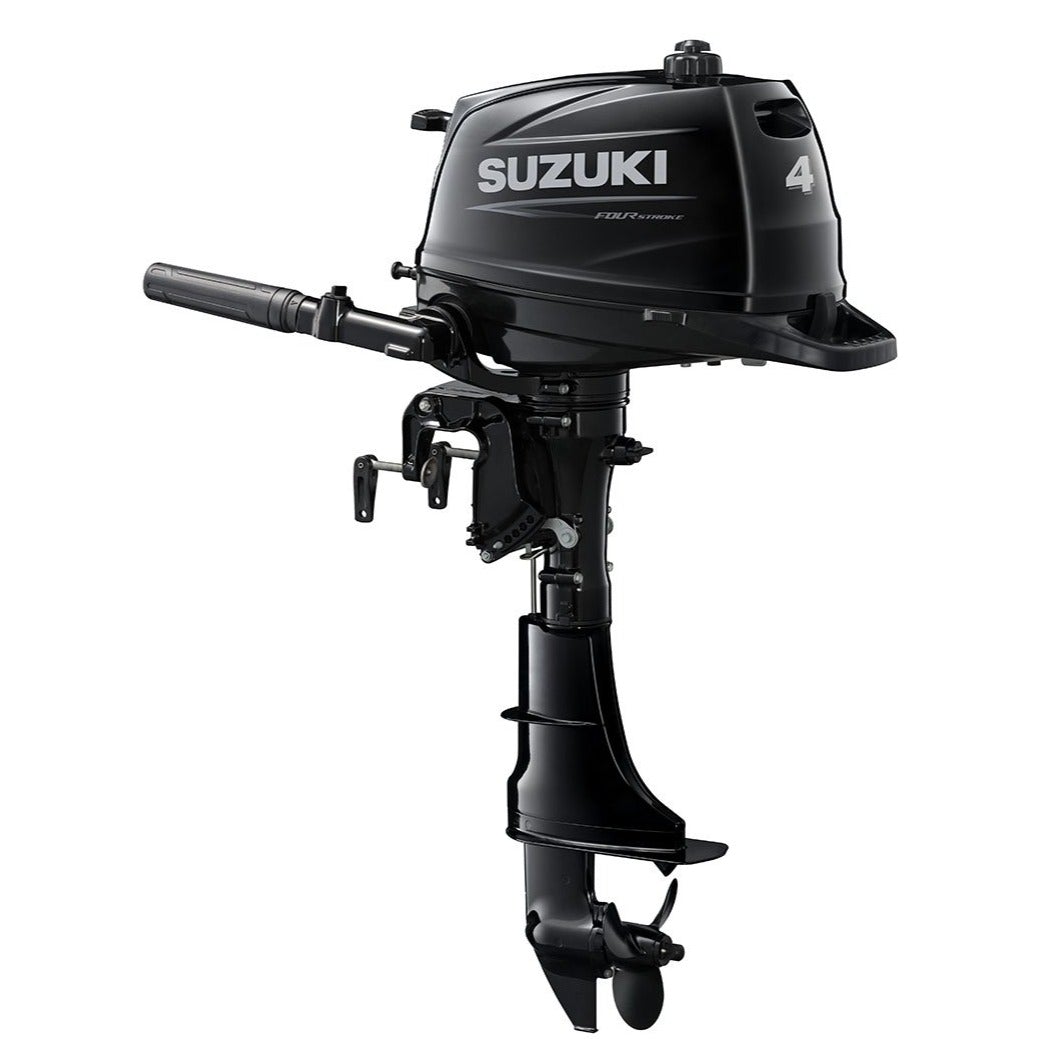

Suzuki 4 HP DF4AS5 Outboard Motor

SKU: DF4AS5
$1,350.00 $1,650.00

The Suzuki 4hp outboard motor model DF4AS5 is perfect for canoes, small fishing boats, and small to medium sized tenders and inflatables. The 4 hp Suzuki outboard boasts the largest displacement of any one cylinder outboard in this hp class. A full-size twist grip throttle, tiller steering, forward-neutral-reverse gear shift with large easy-to-use shift lever, 15 inch shaft, digital CDI ignition and integral fuel tank are just a few of the features you'll find standard on the 4hp. We offer Suzuki's newest 5-year manufacturer warranty, free shipping, and discounted prices!

*Photo may not show the actual model.

Free Shipping on Orders $130+

$ Buy Now, Pay Later with Affirm

CA Customers Warning: Cancer and Reproductive Harm www.P65Warnings.ca.gov

SHAFT LENGTH GUIDELINES

Horsepower 4hp
Weight: 52.0 lb
Shaft Length: 15" (Short)
Starting:Manual
Fuel Delivery:Carburetor
Steering:Tiller
Features
  • Compact and Lightweight Design
  • 3 Way Storage: Stbd, Port, or Front
  • Saltwater Rated
  • Multi-Layer Corrosion Protection
  • Quiet Below-the-Water Exhaust
  • Fold-Down Tiller Handle
  • Rubber Mount Bracket System
  • Twist-Grip Throttle with Tensioner
  • Large Carrying Handle
  • Large Gear Shift Lever
  • Digital CDI Ignition for Quick Starting
  • 3-Star Ultra-Low Emission Rating
  • Shallow Water Drive (2 positions)
  • 5 Trim Positions w/Tilt Lock Pin
  • Over-Rev Limiter Protection
  • Throttle Tension Control
  • Steering Friction Tension Control
  • 90° Left / Right Turning for Tight Spots
  • Emergency Lanyard Stop Switch
  • Built-in .26 Gal. Fuel Tank (40 min. @ WOT)
  • 3-Blade Aluminum Propeller
  • Suzuki's Newest 5-Year Manufacturer Warranty

specifications
MODELDF4AS5
SKUDF4AS5
WEIGHT52.0 lb
MANUFACTURERSuzuki
COUNTRY OF MANUFACTUREThailand
HORSEPOWER4hp
SHAFT LENGTH15" (Short)
STEERINGTiller
STARTINGManual
TRIM & TILTManual
FUEL DELIVERYCarburetor
FUEL TANKInternal
CYLINDER(S)1
DISPLACEMENT138 cc (8.4 cubic inches)
BORE AND STROKE2.38 x 1.89 inches
FULL THROTTLE RPM RANGE4000-5000 RPM
IGNITION SYSTEMDigital Capacitor Discharge Ignition System
INDUCTION SCAVENGINGOHV
VALVES PER CYLINDER2
FUEL TYPEUnleaded Gasoline (87 octane)
FUEL TANK / FUEL LINE.26 US Gallon Integral Fuel Tank
OIL TYPESAE 10W-30 or SAE 10W-40
OIL CAPACITY24 fl oz. (700 mL)
LUBRICATIONWet Sump
ALTERNATOROptional 12V 5A (installation required)
COOLING SYSTEMWater-Cooled
SALTWATER RATEDYes
GEAR RATIO1.92:1
GEAR SHIFTForward-Neutral-Reverse (starboard side lever)
PROPELLER3-Blade Aluminum 7.5" Dia. x 6.5" Pitch
INTERNAL BATTERYNo

In the Box
  • .26 gal. Integral Fuel Tank
  • Owner's Manual
  • Suzuki's Newest 5-Year Manufacturer Warranty
  • Aluminum Prop
  • Tool Kit

Shaft Length Guidelines
