How Does a Boat Motor Work? A Comprehensive Guide to Outboard Mechanics

Outboard motors are the heart of countless boating adventures, providing the power and freedom to explore the waterways. But have you ever stopped to consider the intricate mechanisms that make it all possible?

We'll take you on a journey into the inner workings of an outboard motor, explaining the key components and processes that transform fuel into propulsive power. Whether you're a seasoned boater or just starting your on-water journey, understanding how your boat motor works can enhance your appreciation for these incredible machines and empower you to make informed decisions about their care and maintenance.

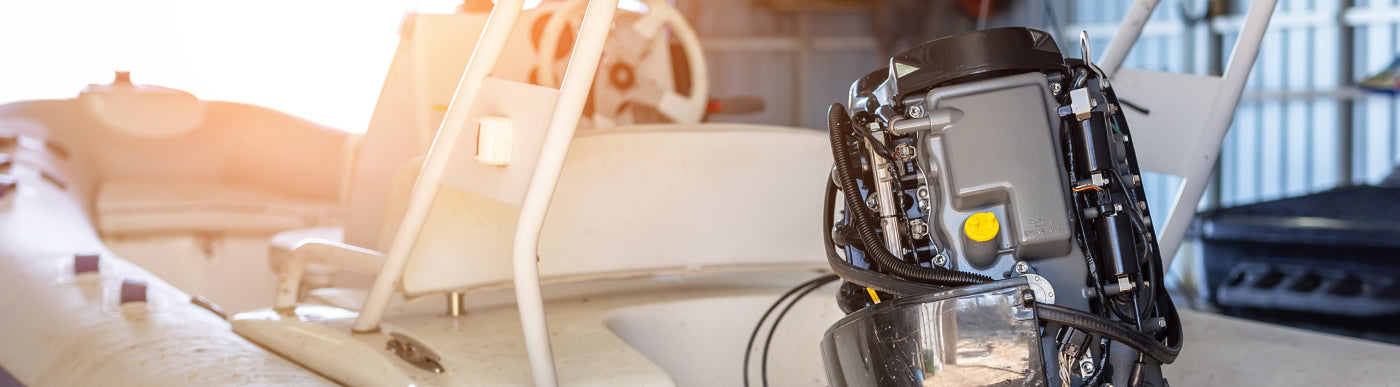

The Powerhead: The Engine Room

At the core of an outboard motor lies the powerhead. This is where the fuel is converted into mechanical energy that drives the propeller. Here's a simplified breakdown of the four-stroke cycle, the most common type in modern outboards:

• Intake: The intake valve opens, allowing a precisely measured mixture of air and fuel to enter the cylinder. Modern outboards often use electronic fuel injection (EFI) for accurate fuel delivery.
• Compression: The piston moves upward, compressing the fuel-air mixture within the cylinder. This compression is essential for efficient combustion.
• Combustion: The spark plug ignites the compressed mixture, causing a controlled explosion that forces the piston downward. This downward force is what generates power.
• Exhaust: As the piston moves back upward, the exhaust valve opens, releasing the burnt gases from the cylinder.

This four-stroke cycle repeats continuously, generating the power that drives the boat.

The Lower Unit: Transferring Power to the Propeller

The lower unit is the underwater portion of the outboard motor. It houses the gears and driveshaft that transmit the power from the powerhead to the propeller.

• Gear Reduction: A series of gears reduces the high rotational speed of the crankshaft (connected to the pistons) to a lower speed suitable for the propeller. This gear reduction also increases torque, which is the twisting force that turns the propeller.
• Driveshaft: The driveshaft connects the gears to the propeller, transmitting rotational power.
• Propeller: The propeller, with its angled blades, converts the rotational motion of the driveshaft into thrust, pushing water backward and propelling the boat forward.



Other Essential Components

Besides the powerhead and lower unit, several other components play vital roles in the operation of an outboard motor:

• Cooling System: Outboard motors use a water-cooling system to prevent overheating. Water is drawn in through intakes in the lower unit, circulated around the engine, and expelled to carry away heat.
• Lubrication System: Engine oil lubricates the moving parts within the powerhead, reducing friction and wear.
• Fuel System: The fuel system delivers fuel from the tank to the engine, ensuring a consistent supply for combustion. This system includes the fuel tank, fuel lines, primer bulb, and fuel filter.
• Electrical System: The electrical system provides power for starting the engine, operating various components (like the ignition system and fuel pump), and charging the battery.
• Steering and Controls: The steering mechanism allows you to control the direction of the outboard, while the throttle and shift controls regulate speed and gear selection.

Outboard motors are intricate machines that combine various systems and components to deliver reliable and efficient propulsion. By understanding the basic principles of how they work, you can better appreciate the engineering behind these powerful engines and gain insights into their maintenance and care. Questions about your outboard motor? Contact our experts today.
